CLASSIC

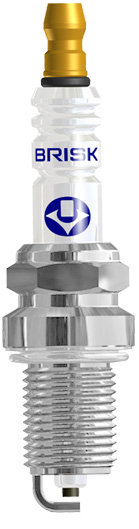

SPARK PLUGS WITH CENTRE ELECTRODE FROM NICKEL ALLOY
Spark plugs with centre electrode made from a special nickel alloy, which perfectly cover the requirements of engines without catalysts.
Replacement interval: see table below.
One ground electrode. Centre electrode made from a special nickel alloy. Good resistance against electrode burnings. Galvanic zinc plating finish.
Suitable for engines without catalysts.
EXPLANATIONS TO THE TABLE:
* custom production
P sealing washer
K sealing cone
type |
code |
custom |
electrode gap |
gasket/seal |
Interval |
key dimensions |
thread length |
thread |
recommended tightening torque |
detail |
K17Y | 1063 | 0,6 | P | max. 150 motohodin | 21 mm | 9,5 mm | M 14x1,25 | 20-30 Nm |
|
|
K19 | 1420 | 0,6 | P | max. 150 motohodin | 21 mm | 9,5 mm | M 14x1,25 | 20-30 Nm |
|
|
J17 | 3054 | 0,75 | P | max. 150 motohodin | 21 mm | 9,5 mm | M 14x1,25 | 20-30 Nm |
|
|
J19 | 3044 | 0,75 | P | max. 150 motohodin | 21 mm | 9,5 mm | M 14x1,25 | 20-30 Nm |
|
|
JR17 | 3053 | 0,75 | P | max. 150 motohodin | 21 mm | 9,5 mm | M 14x1,25 | 20-30 Nm |
|
|
JR19 | 3043 | 0,75 | P | max. 150 motohodin | 21 mm | 9,5 mm | M 14x1,25 | 20-30 Nm |
|
|
L17 | 1318 | 0,7 | P | max. 20.000 km | 21 mm | 19 mm | M 14x1,25 | 20-30 Nm |
|
|
L19 | 1010 | 0,7 | P | max. 20.000 km | 21 mm | 19 mm | M 14x1,25 | 20-30 Nm |
|
|
L14Y | 1369 | 0,7 | P | max. 20.000 km | 21 mm | 19 mm | M 14x1,25 | 20-30 Nm |
|
|
L15Y | 1312 | 0,7 | P | max. 20.000 km | 21 mm | 19 mm | M 14x1,25 | 20-30 Nm |
|
|
L17Y | 1325 | 0,7 | P | max. 20.000 km | 21 mm | 19 mm | M 14x1,25 | 20-30 Nm |
|
|
N14 | 0,7 | P | max. 20.000 km | 21 mm | 12,7 mm | M 14x1,25 | 20-30 Nm |
|
||
N17 | 1316 | 0,7 | P | max. 20.000 km | 21 mm | 12,7 mm | M 14x1,25 | 20-30 Nm |
|
|
N19 | 1324 | 0,7 | P | max. 20.000 km | 21 mm | 12,7 mm | M 14x1,25 | 20-30 Nm |
|
|
N15Y | 1356 | 0,7 | P | max. 20.000 km | 21 mm | 12,7 mm | M 14x1,25 | 20-30 Nm |
|
|
N17Y | 1342 | 0,7 | P | max. 20.000 km | 21 mm | 12,7 mm | M 14x1,25 | 20-30 Nm |
|
|
P15 | 3051 | 0,6 | P | max. 150 motohodin | 19 mm | 9 mm | M 14x1,25 | 20-30 Nm |
|
|
P17 | 3052 | 0,6 | P | max. 150 motohodin | 19 mm | 9 mm | M 14x1,25 | 20-30 Nm |
|
|
PR15 | 3049 | 0,6 | P | max. 150 motohodin | 19 mm | 9 mm | M 14x1,25 | 20-30 Nm |
|
|
PR17 | 3050 | 0,6 | P | max. 150 motohodin | 19 mm | 9 mm | M 14x1,25 | 20-30 Nm |
|
|
P15Y | 3037 | 0,6 | P | max. 150 motohodin | 19 mm | 9 mm | M 14x1,25 | 20-30 Nm |
|
|
P17Y | 3023 | 0,6 | P | max. 150 motohodin | 19 mm | 9 mm | M 14x1,25 | 20-30 Nm |
|
|
P18Y | 3039 | 0,6 | P | max. 150 motohodin | 19 mm | 9 mm | M 14x1,25 | 20-30 Nm |
|
|
PR15Y | 3022 | 0,6 | P | max. 150 motohodin | 19 mm | 9 mm | M 14x1,25 | 20-30 Nm |
|
|
PR17Y | 3021 | 0,6 | P | max. 150 motohodin | 19 mm | 9 mm | M 14x1,25 | 20-30 Nm |
|
|
PR18Y | 3038 | 0,6 | P | max. 150 motohodin | 19 mm | 9 mm | M 14x1,25 | 20-30 Nm |
|
|
U15 | 3007 | 0,6 | K | max. 150 motohodin | 16 mm | 7,8 mm | M 14x1,25 | 10-20 Nm |
|
|
U17 | 3006 | 0,6 | K | max. 150 motohodin | 16 mm | 7,8 mm | M 14x1,25 | 10-20 Nm |
|
|
UR15 | 3063 | 0,6 | K | max. 150 motohodin | 16 mm | 7,8 mm | M 14x1,25 | 10-20 Nm |
|
|
UR17 | 3064 | 0,6 | K | max. 150 motohodin | 16 mm | 7,8 mm | M 14x1,25 | 10-20 Nm |
|
|
U17Y | 3067 | 0,6 | K | max. 150 motohodin | 16 mm | 7,8 mm | M 14x1,25 | 10-20 Nm |
|
|
UR17Y | 3065 | 0,6 | K | max. 150 motohodin | 16 mm | 7,8 mm | M 14x1,25 | 10-20 Nm |
|
