Brisk

BRISK PLATIN PLATIN

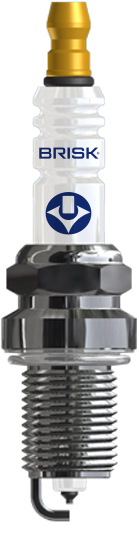

SPARK PLUGS WITH PLATINUM CONTACT

Wide range spark plugs with centre electrode and platinum contact. Perfect ignition of air/fuel mixture. Extended replacement interval.

Replacement interval: see table below.

The platinum on the centre electrode ensures stability of electrode distance over a very long time. The small diameter of electrode tip does not prevent propagation of the flame front in the combustion chamber and contributes to increase in engine power. This also suppresses the quenching effect during cold starts.



EXPLANATIONS TO THE TABLE:
* custom production
P sealing washer
K sealing cone

type
code
custom
electrode gap
gasket/seal
Interval
key dimensions
thread length
thread
recommended tightening torque
detail
BR12YP 1524 0,7 P max. 90.000 km 16 mm 19 mm M 12x1,25 15-20 Nm
DR12YP 1508 0,8 P max. 90.000 km 16 mm 19 mm M 14x1,25 20-30 Nm
DR14YP 1425 0,8 P max. 90.000 km 16 mm 19 mm M 14x1,25 20-30 Nm
DR14YP-1 1426 1,0 P max. 90.000 km 16 mm 19 mm M 14x1,25 20-30 Nm
DR15YP 1400 0,8 P max. 90.000 km 16 mm 19 mm M 14x1,25 20-30 Nm
DR15YP-1 1401 1,0 P max. 90.000 km 16 mm 19 mm M 14x1,25 20-30 Nm
DR17YP 1402 0,8 P max. 90.000 km 16 mm 19 mm M 14x1,25 20-30 Nm
DR17YP-1 1403 1,0 P max. 90.000 km 16 mm 19 mm M 14x1,25 20-30 Nm
ER17YP-1 1796 * 1,0 P max. 90.000 km 16 mm 26,5 mm M 14x1,25 20-30 Nm
GR17LPP-5 1479 * 1,5 K max. 90.000 km 16 mm 17,5 mm M 14x1,25 10-20 Nm
GR15YP-1 1579 1,0 K max. 90.000 km 16 mm 17,5 mm M 14x1,25 10-20 Nm
GR15YP-3 1835 * 1,3 K max. 90.000 km 16 mm 17,5 mm M 14x1,25 10-20 Nm
GR17YP-3 1474 * 1,3 K max. 90.000 km 16 mm 17,5 mm M 14x1,25 10-20 Nm
GR17YP-5 1475 * 1,5 K max. 90.000 km 16 mm 17,5 mm M 14x1,25 10-20 Nm
GR19YPP-5 1478 * 1,5 K max. 90.000 km 16 mm 17,5 mm M 14x1,25 10-20 Nm
LR14YP 1408 0,8 P max. 90.000 km 21 mm 19 mm M 14x1,25 20-30 Nm
LR14YP-1 1409 1,0 P max. 90.000 km 21 mm 19 mm M 14x1,25 20-30 Nm
LR15YP 1404 0,8 P max. 90.000 km 21 mm 19 mm M 14x1,25 20-30 Nm
LR15YP-1 1405 1,0 P max. 90.000 km 21 mm 19 mm M 14x1,25 20-30 Nm
LR17YP 1406 0,8 P max. 90.000 km 21 mm 19 mm M 14x1,25 20-30 Nm
LR17YP-1 1407 1,0 P max. 90.000 km 21 mm 19 mm M 14x1,25 20-30 Nm
MR15LP-1 1851 1,0 P max. 90.000 km 14 mm 26,5 mm M 12x1,25 15-20 Nm
