PREMIUM LGS

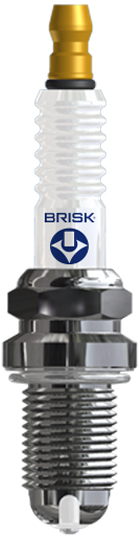

SPARK PLUGS WITH SPECIAL DESIGN SPARK GAP
Spark plugs with long flash-over with a possibility of spark-over around the full circumference (360°).
Replacement interval: see table below.
The advantage is perfect ignition of the air-fuel mixture in the combustion chamber. The discharge is unrestricted around the entire perimeter of the insulator tip. The Premium LGS range spark plugs require powerful ignition systems, perfect blending of mixture and utilisation of the engines in the high-rpm zone.
EXPLANATIONS TO THE TABLE:
* custom production
P sealing washer
K sealing cone
type |
code |
custom |
electrode gap |
gasket/seal |
Interval |
key dimensions |
thread length |
thread |
recommended tightening torque |
detail |
AOR10LGS | 1513 | * | P | max. 50 motohodin (Racing) | 16 mm | 19 mm | M 10x1,00 | 10-15 Nm |
|
|
AOR12LGS | 1514 | * | P | max. 50 motohodin (Racing) / max. 30.000 km (Tuning) | 16 mm | 19 mm | M 10x1,00 | 10-15 Nm |
|
|
AOR14LGS | 3090 | * | P | max. 30.000 km | 16 mm | 19 mm | M 10x1,00 | 10-15 Nm |
|
|
BOR10LGS | 3091 | P | max. 50 motohodin (Racing) | 16 mm | 19 mm | M 12x1,25 | 15-20 Nm |
|
||
BOR12LGS | 3092 | P | max. 50 motohodin (Racing) / max. 30.000 km (Tuning) | 16 mm | 19 mm | M 12x1,25 | 15-20 Nm |
|
||
BOR14LGS | 3093 | P | max. 30.000 km | 16 mm | 19 mm | M 12x1,25 | 15-20 Nm |
|
||
COR10LGS | 3171 | * | P | max. 50 motohodin (Racing) | 14 mm | 26,5 mm | M 10x1,00 | 10-15 Nm |
|
|
COR12LGS | 3168 | * | P | max. 50 motohodin (Racing) | 14 mm | 26,5 mm | M 10x1,00 | 10-15 Nm |
|
|
DOR08LGS | 3146 | * | P | max. 50 motohodin (Racing) | 16 mm | 19 mm | M 14x1,25 | 20-30 Nm |
|
|
DOR11LGS | 3141 | * | P | max. 50 motohodin (Racing) | 16 mm | 19 mm | M 14x1,25 | 20-30 Nm |
|
|
DOR12LGS | 3032 | P | max. 50 motohodin (Racing) / max. 30.000 km (Tuning) | 16 mm | 19 mm | M 14x1,25 | 20-30 Nm |
|
||
DOR14LGS | 3025 | P | max. 30.000 km | 16 mm | 19 mm | M 14x1,25 | 20-30 Nm |
|
||
DOR15LGS | 3026 | P | max. 30.000 km | 16 mm | 19 mm | M 14x1,25 | 20-30 Nm |
|
||
DOR17LGS | 3027 | P | max. 30.000 km | 16 mm | 19 mm | M 14x1,25 | 20-30 Nm |
|
||
EOR14LGS | 3142 | * | P | max. 50 motohodin (Racing) / max. 30.000 km (Tuning) | 16 mm | 26,5 mm | M 14x1,25 | 20-30 Nm |
|
|
EOR15LGS | 3143 | * | P | max. 30.000 km | 16 mm | 26,5 mm | M 14x1,25 | 20-30 Nm |
|
|
GOR14LGS | 3080 | K | max. 50 motohodin (Racing) / max. 30.000 km (Tuning) | 16 mm | 17,5 mm | M 14x1,25 | 10-20 Nm |
|
||
GOR14LGS-T | * | K | max. 30.000 km | 16 mm | 17,5 mm | M 14x1,25 | 10-20 Nm |
|
||
GOR15LGS | 3081 | K | max. 30.000 km | 16 mm | 17,5 mm | M 14x1,25 | 10-20 Nm |
|
||
GOR15LGS-T | * | K | max. 30.000 km | 16 mm | 17,5 mm | M 14x1,25 | 10-20 Nm |
|
||
GOR17LGS | 3082 | K | max. 30.000 km | 16 mm | 17,5 mm | M 14x1,25 | 10-20 Nm |
|
||
GOR19LGS | 3083 | * | K | max. 30.000 km | 16 mm | 17,5 mm | M 14x1,25 | 10-20 Nm |
|
|
HOR14LGS | 3085 | K | max. 50 motohodin (Racing) / max. 30.000 km (Tuning) | 16 mm | 11,2 mm | M 14x1,25 | 10-20 Nm |
|
||
HOR15LGS | 3121 | K | max. 30.000 km | 16 mm | 11,2 mm | M 14x1,25 | 10-20 Nm |
|
||
HOR17LGS | 3086 | K | max. 30.000 km | 16 mm | 11,2 mm | M 14x1,25 | 10-20 Nm |
|
||
HOR19LGS | 3087 | K | max. 30.000 km | 16 mm | 11,2 mm | M 14x1,25 | 10-20 Nm |
|
||
LOR12LGS | 3034 | P | max. 50 motohodin (Racing) / max. 30.000 km (Tuning) | 21 mm | 19 mm | M 14x1,25 | 20-30 Nm |
|
||
LOR14LGS | 3028 | P | max. 50 motohodin (Racing) / max. 30.000 km (Tuning) | 21 mm | 19 mm | M 14x1,25 | 20-30 Nm |
|
||
LOR15LGS | 3029 | P | max. 30.000 km | 21 mm | 19 mm | M 14x1,25 | 20-30 Nm |
|
||
LOR17LGS | 3030 | P | max. 30.000 km | 21 mm | 19 mm | M 14x1,25 | 20-30 Nm |
|
||
MOR10LGS | * | P | max. 50 motohodin (Racing) | 14 mm | 26,5 mm | M 12x1,25 | 15-20 Nm |
|
||
MOR12LGS | 3166 | * | P | max. 50 motohodin (Racing) | 14 mm | 26,5 mm | M 12x1,25 | 15-20 Nm |
|
|
MOR14LGS | 3167 | * | P | max. 50 motohodin (Racing) / max. 30.000 km (Tuning) | 14 mm | 26,5 mm | M 12x1,25 | 15-20 Nm |
|
|
NAOR10LGS | 3152 | * | P | max. 50 motohodin (Racing) / max. 30.000 km (Tuning) | 16 mm | 12,7 mm | M 10x1,00 | 10-15 Nm |
|
|
NAOR12LGS | 3151 | * | P | max. 50 motohodin (Racing) / max. 30.000 km (Tuning) | 16 mm | 12,7 mm | M 10x1,00 | 10-15 Nm |
|
|
NAOR14LGS | 3150 | * | P | max. 30.000 km | 16 mm | 12,7 mm | M 10x1,00 | 10-15 Nm |
|
|
NOR12LGS | 3148 | * | P | max. 50 motohodin (Racing) / max. 30.000 km (Tuning) | 21 mm | 12,7 mm | M 14x1,25 | 20-30 Nm |
|
|
NOR14LGS | 3068 | P | max. 50 motohodin (Racing) / max. 30.000 km (Tuning) | 21 mm | 12,7 mm | M 14x1,25 | 20-30 Nm |
|
||
NOR15LGS | 3147 | * | P | max. 50 motohodin (Racing) / max. 30.000 km (Tuning) | 21 mm | 12,7 mm | M 14x1,25 | 20-30 Nm |
|
|
ROR14LGS | 3144 | * | K | max. 50 motohodin (Racing) / max. 30.000 km (Tuning) | 16 mm | 25 mm | M 14x1,25 | 10-20 Nm |
|
|
ROR15LGS | 3145 | * | K | max. 30.000 km | 16 mm | 25 mm | M 14x1,25 | 10-20 Nm |
|
|
ROR17LGS | 3170 | * | K | max. 30.000 km | 16 mm | 25 mm | M 14x1,25 | 10-20 Nm |
|
