BRISK SILVER RACING SILVER RACING

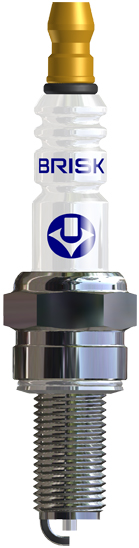

SPECIAL SPARK PLUGS WITH SILVER CENTRE ELECTRODE

Spark plugs with silver centre electrode, special design, adapted to high thermal load, vibrations and pressures.

The open spark gap does not hinder propagation of the flame and ensures perfect ignition of the mixture. Unlike standard spark plugs with the same thermal properties, the silver centre electrode makes it possible (thanks to its higher thermal conductivity) to use a larger surface area of the insulator tip and hence ensure longer protection against contamination with conductive deposits.

Replacement interval: 50 engine hours



EXPLANATIONS TO THE TABLE:
* custom production
P sealing washer
K sealing cone

type
code
custom
electrode gap
gasket/seal
Interval
key dimensions
thread length
thread
recommended tightening torque
detail
A08S 1780 * 0,7 P max. 30.000 km 16 mm 19 mm M 10x1,00 10-15 Nm
A10S 1495 0,7 P max. 30.000 km 16 mm 19 mm M 10x1,00 10-15 Nm
AR08S 1516 * 0,7 P max. 30.000 km 16 mm 19 mm M 10x1,00 10-15 Nm
AR10S 1517 * 0,7 P max. 30.000 km 16 mm 19 mm M 10x1,00 10-15 Nm
AR10S-9 1920 * 0,9 P max. 30.000 km 16 mm 19 mm M 10x1,00 10-15 Nm
A12YS 1782 * 0,7 P max. 30.000 km 16 mm 19 mm M 10x1,00 10-15 Nm
A14YS 1781 * 0,7 P max. 30.000 km 16 mm 19 mm M 10x1,00 10-15 Nm
B10S 1502 0,7 P max. 30.000 km 16 mm 19 mm M 12x1,25 15-20 Nm
B12S 1504 0,7 P max. 30.000 km 16 mm 19 mm M 12x1,25 15-20 Nm
B14S 1783 * 0,7 P max. 30.000 km 16 mm 19 mm M 12x1,25 15-20 Nm
BR10S 1520 * 0,7 P max. 30.000 km 16 mm 19 mm M 12x1,25 15-20 Nm
BR12S 1522 * 0,7 P max. 30.000 km 16 mm 19 mm M 12x1,25 15-20 Nm
BR10YS 1509 * 0,7 P max. 30.000 km 16 mm 19 mm M 12x1,25 15-20 Nm
BR10YS-9 1521 * 0,9 P max. 30.000 km 16 mm 19 mm M 12x1,25 15-20 Nm
CR10YS 1715 * 0,7 P max. 30.000 km 14 mm 26,5 mm M 10x1,00 10-15 Nm
D08S 1716 * 0,7 P max. 30.000 km 16 mm 19 mm M 14x1,25 20-30 Nm
D10S 1785 * 0,7 P max. 30.000 km 16 mm 19 mm M 14x1,25 20-30 Nm
D12S 1784 * 0,7 P max. 30.000 km 16 mm 19 mm M 14x1,25 20-30 Nm
DOR12YS-1 1553 * 1,0 P max. 30.000 km 16 mm 19 mm M 14x1,25 20-30 Nm
DR08S * 0,7 P max. 30.000 km 16 mm 19 mm M 14x1,25 20-30 Nm
DR10S * 0,7 P max. 30.000 km 16 mm 19 mm M 14x1,25 20-30 Nm
DR12S 1142 0,7 P max. 30.000 km 16 mm 19 mm M 14x1,25 20-30 Nm
D12YS * 0,7 P max. 30.000 km 16 mm 19 mm M 14x1,25 20-30 Nm
DR12YS 1546 0,7 P max. 30.000 km 16 mm 19 mm M 14x1,25 20-30 Nm
ER12S 1786 * 0,75 P max. 50 motohodin (Racing) / max. 30.000 km 16 mm 26,5 mm M 14x1,25 20-30 Nm
ER12YS 1936 * 0,7 P max. 50 motohodin (Racing) / max. 30.000 km 16 mm 26,5 mm M 14x1,25 20-30 Nm
ER14S 1583 * 0,7 P max. 50 motohodin (Racing) / max. 30.000 km 16 mm 26,5 mm M 14x1,25 20-30 Nm
ER14YS 1717 * 0,7 P max. 50 motohodin (Racing) / max. 30.000 km 16 mm 26,5 mm M 14x1,25 20-30 Nm
G08S * 0,7 K max. 50 motohodin (Racing) 16 mm 17,5 mm M 14x1,25 10-20 Nm
G12S 1787 * 0,7 K max. 50 motohodin (Racing) 16 mm 17,5 mm M 14x1,25 10-20 Nm
GR08S 1803 * 0,7 K max. 50 motohodin (Racing) 16 mm 17,5 mm M 14x1,25 10-20 Nm
GR10S 1804 * 0,7 K max. 50 motohodin (Racing) 16 mm 17,5 mm M 14x1,25 10-20 Nm
GR12S * 0,7 K max. 50 motohodin (Racing) 16 mm 17,5 mm M 14x1,25 10-20 Nm
GR14S 1493 0,7 K max. 50 motohodin (Racing) 16 mm 17,5 mm M 14x1,25 10-20 Nm
G14YS 1492 0,7 K max. 50 motohodin (Racing) 16 mm 17,5 mm M 14x1,25 10-20 Nm
H08S * 0,7 K max. 50 motohodin (Racing) 16 mm 11,2 mm M 14x1,25 10-20 Nm
L08S * 0,6 P max. 50 motohodin (Racing) 21 mm 19 mm M 14x1,25 20-30 Nm
L10S 1528 * 0,6 P max. 50 motohodin (Racing) 21 mm 19 mm M 14x1,25 20-30 Nm
L11S 1530 * 0,6 P max. 50 motohodin (Racing) 21 mm 19 mm M 14x1,25 20-30 Nm
L10SL 1529 * 0,6 P max. 50 motohodin (Racing) 21 mm 19 mm M 14x1,25 20-30 Nm
L11SL 1531 * 0,6 P max. 50 motohodin (Racing) 21 mm 19 mm M 14x1,25 20-30 Nm
LR10S 1532 * 0,6 P max. 50 motohodin (Racing) 21 mm 19 mm M 14x1,25 20-30 Nm
LR11S 1534 * 0,6 P max. 50 motohodin (Racing) 21 mm 19 mm M 14x1,25 20-30 Nm
LR10SL 1533 * 0,6 P max. 50 motohodin (Racing) 21 mm 19 mm M 14x1,25 20-30 Nm
LR11SL 1535 * 0,6 P max. 50 motohodin (Racing) 21 mm 19 mm M 14x1,25 20-30 Nm
LR12SL 1537 * 0,6 P max. 50 motohodin (Racing) 21 mm 19 mm M 14x1,25 20-30 Nm
MR12LS 1832 * 0,9 P max. 50 motohodin (Racing) 14 mm 26,5 mm M 12x1,25 15-20 Nm
MR10S 1791 * 0,7 P max. 50 motohodin (Racing) 14 mm 26,5 mm M 12x1,25 15-20 Nm
MR12S 1790 * 0,7 P max. 50 motohodin (Racing) 14 mm 26,5 mm M 12x1,25 15-20 Nm
MR12YS 1836 * 0,6 P max. 50 motohodin (Racing) 14 mm 26,5 mm M 12x1,25 15-20 Nm
MR12YS-6 * 0,6 P max. 50 motohodin (Racing) 14 mm 26,5 mm M 12x1,25 15-20 Nm
N10S 1538 * 0,6 P max. 50 motohodin (Racing) 21 mm 12,7 mm M 14x1,25 20-30 Nm
N11S 1539 * 0,6 P max. 50 motohodin (Racing) 21 mm 12,7 mm M 14x1,25 20-30 Nm
QR08S * 0,55 P max. 50 motohodin (Racing) 16 mm 26,5 mm M 12x1,25 15-20 Nm
QR10S * 0,55 P max. 50 motohodin (Racing) 16 mm 26,5 mm M 12x1,25 15-20 Nm
QR12LS 1856 * 0,65 P max. 50 motohodin (Racing) 16 mm 26,5 mm M 12x1,25 15-20 Nm
QR14LS * 0,65 P max. 50 motohodin (Racing) / max. 30.000 km 16 mm 26,5 mm M 12x1,25 15-20 Nm
RR08S 1815 * 0,75 K max. 50 motohodin (Racing) 16 mm 25 mm M 14x1,25 10-20 Nm
RR10S 1793 * 0,75 K max. 50 motohodin (Racing) 16 mm 25 mm M 14x1,25 10-20 Nm
RR12S 1792 * 0,75 K max. 50 motohodin (Racing) 16 mm 25 mm M 14x1,25 10-20 Nm
RR14S * 0,75 K max. 50 motohodin (Racing) / max. 30.000 km 16 mm 25 mm M 14x1,25 10-20 Nm
RR15S 1937 * 0,75 K max. 50 motohodin (Racing) / max. 30.000 km 16 mm 25 mm M 14x1,25 10-20 Nm
RR14YS 1795 * 0,7 K max. 50 motohodin (Racing) / max. 30.000 km 16 mm 25 mm M 14x1,25 10-20 Nm
XOR12YS-1 * 1,0 K max. 50 motohodin (Racing) 14 mm 25,7 mm M 12x1,25 10-20 Nm
XOR14YS-1 * 1,0 K max. 50 motohodin (Racing) 14 mm 25,7 mm M 12x1,25 10-20 Nm
3VR08S * 0,8 K max. 50 motohodin (Racing) 14,2 mm 20,5 mm M 16x1,5 10-20 Nm
3VR10S * 0,8 K max. 50 motohodin (Racing) 14,2 mm 20,5 mm M 16x1,5 10-20 Nm
3VR12S * 0,8 K max. 50 motohodin (Racing) 14,2 mm 20,5 mm M 16x1,5 10-20 Nm
3VR14S * 0,8 K max. 50 motohodin (Racing) / max. 30.000 km (Tuning) 14,2 mm 20,5 mm M 16x1,5 10-20 Nm
